fix(client): synchronize companion anchors on direct motion

[DoodleBears]

Issue #1248 · Parent #1177 · Agent claim

Closes #1248 · Refs #1177 · Task codex/local/01a11734-bb09-7f01-9d45-adc0f5df6269

Why the change

Releasing a Window Companion in reduced motion could return the character to the floor before its connector followed, so direct motion now presents the character and bubble origin together.

Special things to note

• Merge risk: two-way door — revert this Client presentation correction; small blast radius — companion geometry only, with no Host, persistence or permissions change. Review direct-event batching, lifecycle cleanup and displayed-pose sampling.
• PR feat(client): anchor companion bubbles to the displayed bust #1183 merged its preceding head while this regression was being diagnosed. This follow-up starts from that merge, 85e9dfbe. Runtime capture fbb29752 has an identical complete tracked tree to follow-up 426167c9; current head adds only media and ledger references. Captures are attributed to their actual execution source.
• Qualification is bounded to reduced-motion reading, keyboard movement and the first observed post-release frame. Held/reversing drag, moving-hover/grace and genuine background checks remain under Window Companion: body-projected bubble anchors for the pixel bust #1177; performance remains under Window Companion: measure frame and heap costs and agree performance budgets #1167.

Change outline

 pointer / keyboard / cancellation / motion-policy / resize
-  commit character → wait for animation frame → commit bubble origin
+  mounted presentation → project anchor at next position + commit character together
 existing visible animation-frame sampling and disposal remain

Real DSH reduced-motion release — Chinese, 1559 × 865, dark

Same isolated Profile, identities, history, viewport, theme and native drag/release scenario; new reply marker and sidebar unread count differ. These settled PNGs do not show the transient defect. An independent read-only observer measures the first rAF callback after trusted native pointerup:

Observation	Before	After
Character bottom	865px	865px
Head top / connector screen Y	769px / 32px	769px / 769px
Origin error	737px	0px
Later reading/theme/keyboard/release samples	120 aligned	120 aligned

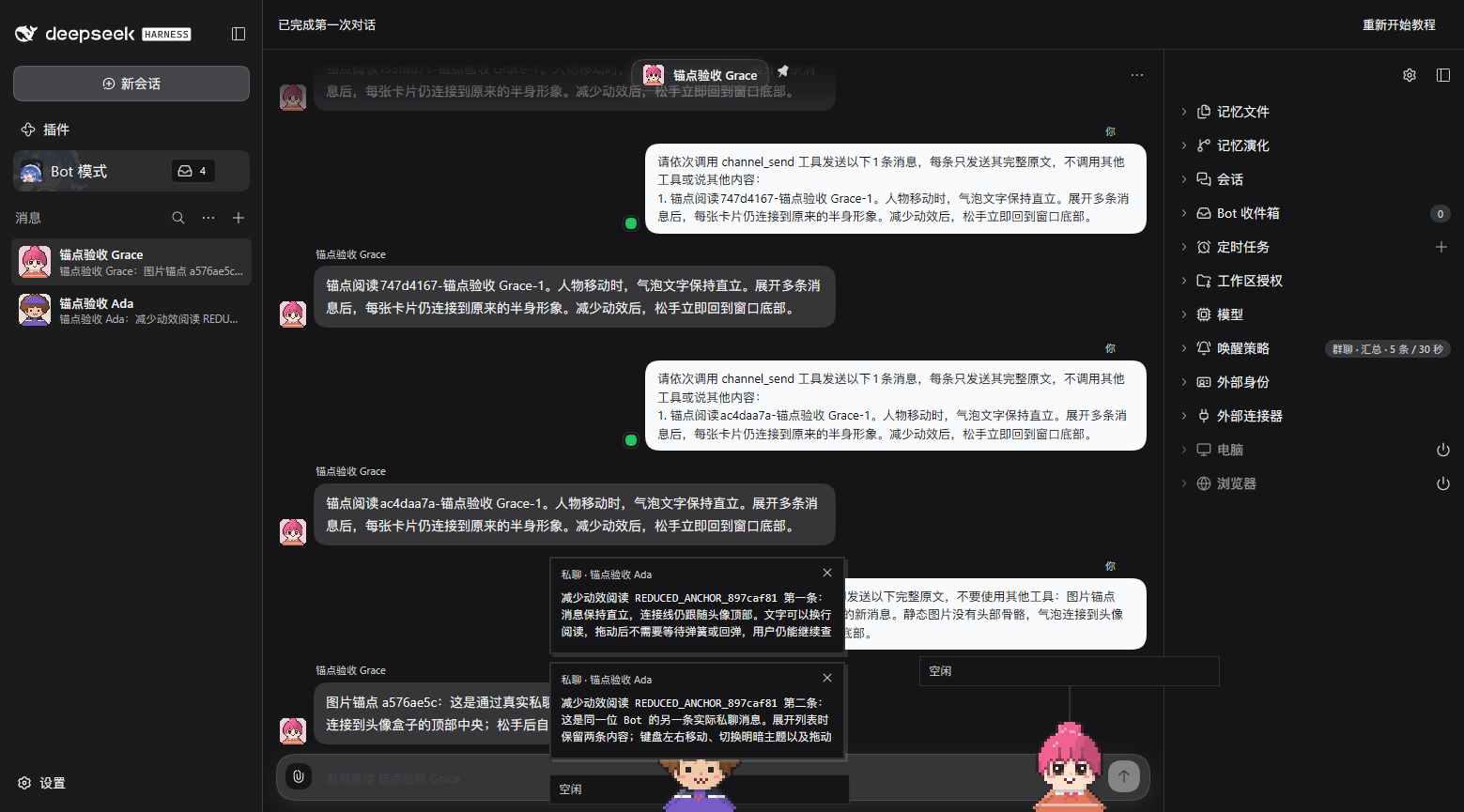

Before: settled after the mismatch	After: settled with synchronized origin

Continuous baseline recording · Continuous corrected recording, 36.167s. Silent official MCP output, container-remuxed only; downloadable repository WebM files, no inline video-player claim. The first observed callback is not proof about every compositor frame; no invented first-frame screenshot is supplied.

Corrected reading and native keyboard movement — both themes

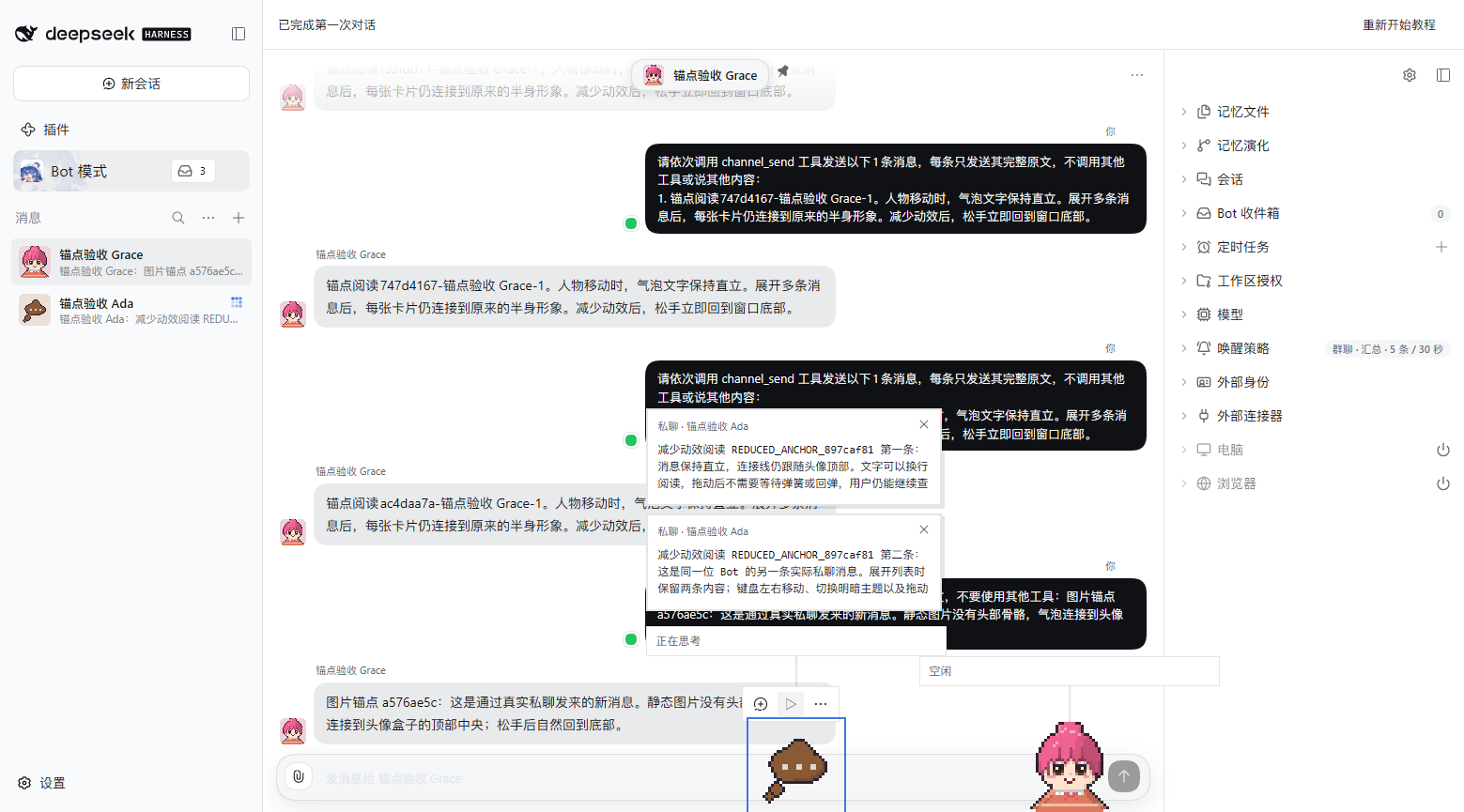

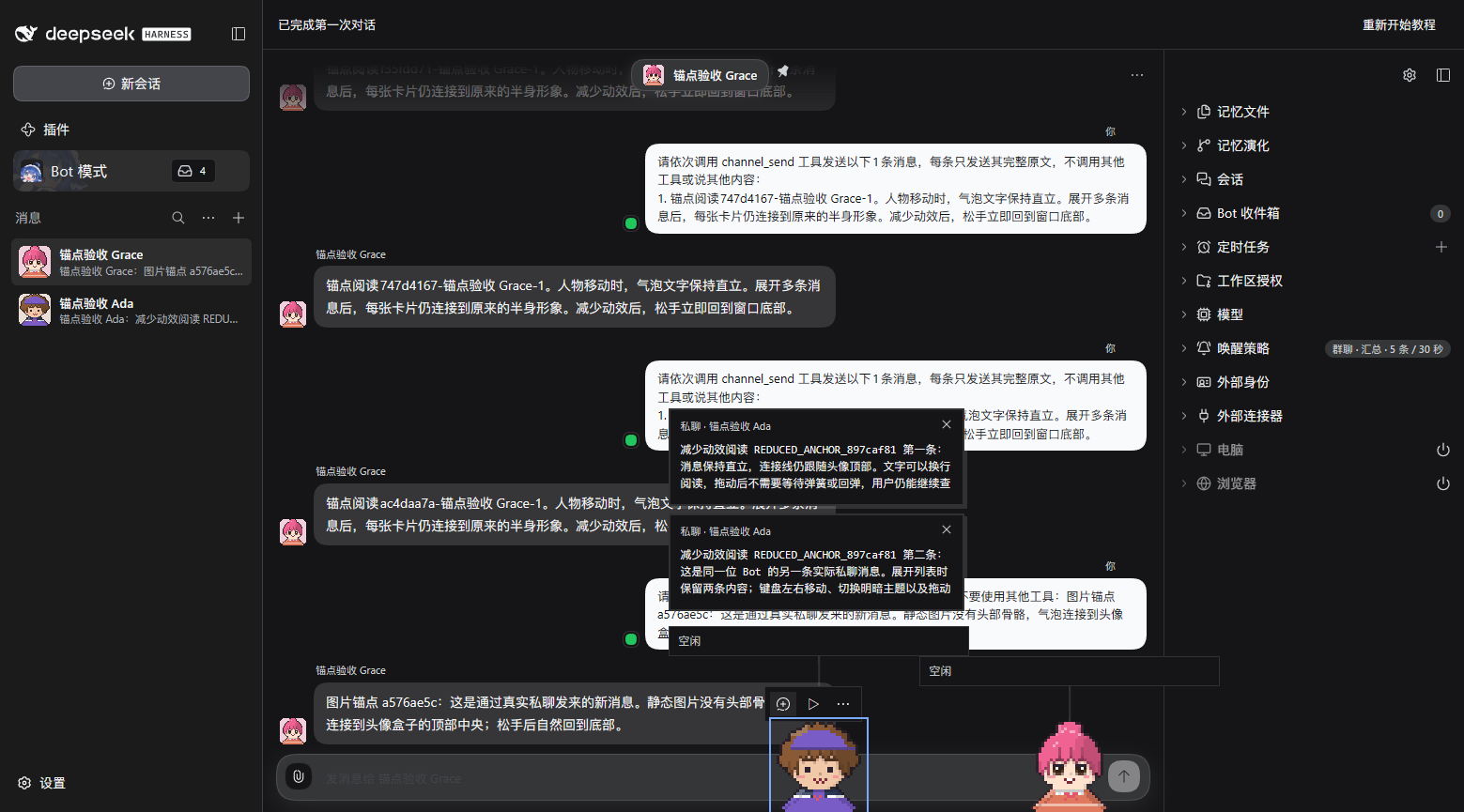

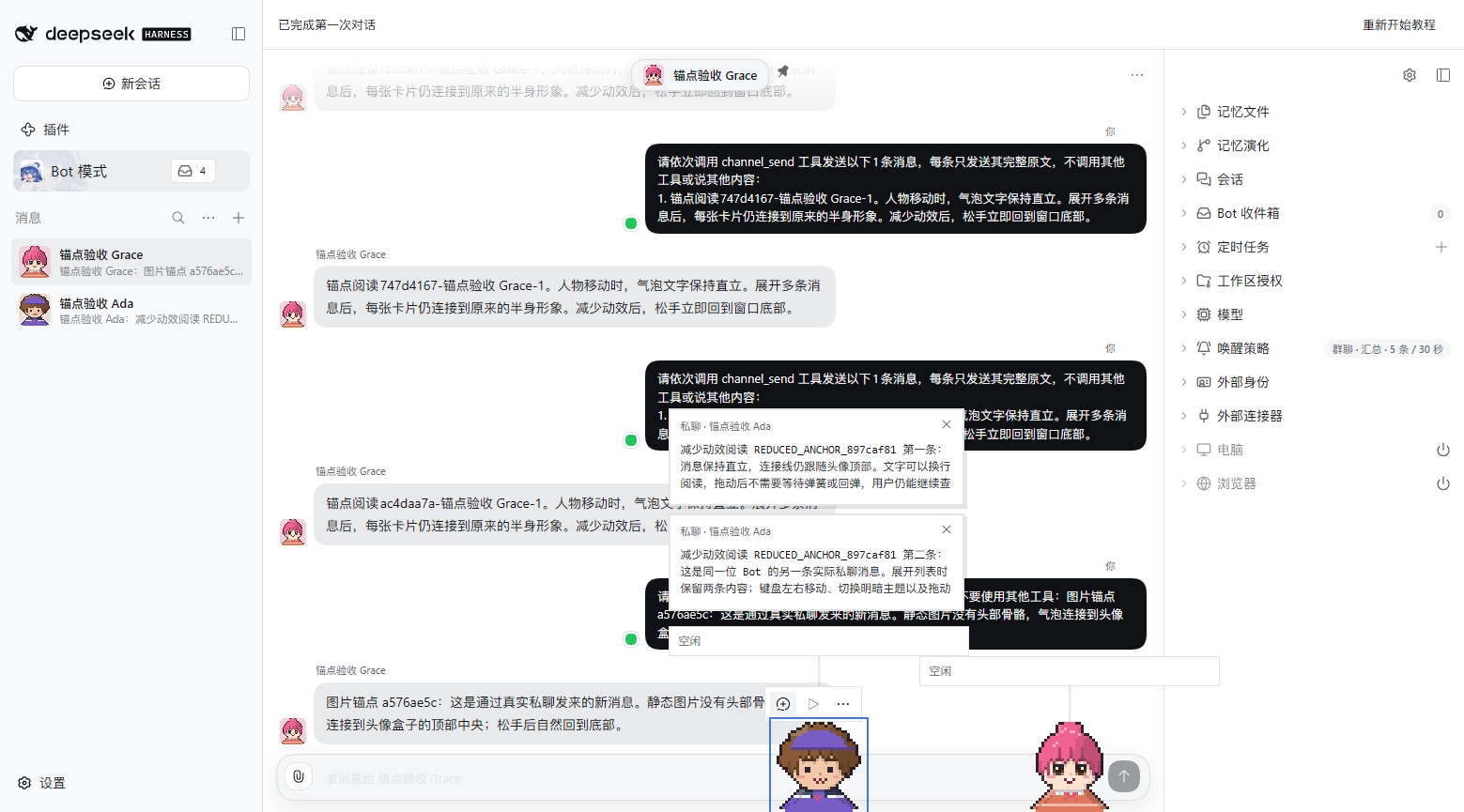

Light reading	Light after arrow keys	Dark reading

Two exact new Bot-authored replies are checked against canonical Channel messages. Native pause controls stop walking; public character focus retains reading. All four phases remain in one document, cards upright and within the viewport; Avatar Appearance/image fields are unchanged. Console inspection found0JavaScript errors; owned test pages/browser closed.

The initial baseline setup timed out waiting for visible cards despite real replies. That attempt is preserved privately. A subsequent baseline adds live-stream and outside-focus preconditions, without claiming which change caused recovery, and exposes the737px defect. Sanitized qualification · Setup and limits.

Validation

Mounted public-View regression: red before the fix (300px stale origin), green after, inspecting the immediate committed DOM without another animation frame. Focused8tests, Client144files/1,038tests, typecheck, lint/source policy, format, bilingual ledgers and build pass; existing warnings remain. No local Windows full-suite pass is claimed. Full current-head CI37879666979 passed in5m40s, including repository tests, build and generated-output checks. Final Standards and Spec reviews against85e9dfbe each report0actionable findings. All5published images and2recording links were verified in the actual GitHub page; the verification browser was closed. Ready for review; no merge performed.

[coderabbitai]

Warning

Review limit reached

You've used all free OSS reviews for now. Wait for the free limit to reset to keep reviewing this public repository.

Next included review available in 3 minutes.

Check out review usage here.

View limit details

Limit details: You’ve used the included review currently available.

Learn how review limits work.

Review configuration:

⚙️ Run configuration

• Configuration used: defaults
• Review profile: CHILL
• Plan: Advanced
• Run ID: 17d34392-569f-4e88-afec-893286da0787

📥 Commits

Reviewing files that changed from the base of the PR and between 85e9dfb and 803be5e.

⛔ Files ignored due to path filters (7)

• docs/assets/pr/1248-companion-release-anchor/reduced-keyboard-light.png is excluded by !**/*.png
• docs/assets/pr/1248-companion-release-anchor/reduced-reading-dark.png is excluded by !**/*.png
• docs/assets/pr/1248-companion-release-anchor/reduced-reading-light.png is excluded by !**/*.png
• docs/assets/pr/1248-companion-release-anchor/reduced-released-reading-dark.png is excluded by !**/*.png
• docs/assets/pr/1248-companion-release-anchor/release-after.webm is excluded by !**/*.webm
• docs/assets/pr/1248-companion-release-anchor/release-before-settled-dark.png is excluded by !**/*.png
• docs/assets/pr/1248-companion-release-anchor/release-before.webm is excluded by !**/*.webm

📒 Files selected for processing (6)

• CHANGELOG.md
• CHANGELOG.zh.md
• docs/assets/pr/1248-companion-release-anchor/README.md
• docs/assets/pr/1248-companion-release-anchor/qualification.json
• packages/client/src/client/window-companion-view.tsx
• packages/client/test/window-companion-view.test.ts

• Autopilot · Keep fixing CodeRabbit findings and required CI, and resolving merge conflicts

---

Thanks for using CodeRabbit! It's free for OSS, and your support helps us grow. If you like it, consider giving us a shout-out.

❤️ Share

• X
• Mastodon
• Reddit
• LinkedIn

_{Comment @coderabbitai help to get the list of available commands.}

[DoodleBears]

Closing as superseded: the same direct-motion correction is already on main (9a01a3e). packages/client/src/client/window-companion-view.tsx there commits the character and bubble origin together through presentPoint on pointer release, keyboard movement, cancellation, motion-policy changes and resize, and the regression keeps the Avatar tether aligned through resize and the first reduced-motion release commit in packages/client/test/window-companion-view.test.ts passes on main. The code arrived with the #1180 integration noted on #1248, so this PR now only conflicts. Its evidence media stays reachable from this PR.

---
