Rango: Add Tron swap support

[j0ntz]

CHANGELOG

Does this branch warrant an entry to the CHANGELOG?

• Yes
• No

Dependencies

Needs edge-currency-accountbased Tron contract-call support to execute (PR linked in the description).

Description

Asana: https://app.asana.com/0/1215088146871429/1216839790397157

tron -> TRON has been in the Rango mapping all along, so TRON quotes were already being
requested. Building the transaction was the missing half: tx.type === 'TRON' fell into the
default: branch, which runs asEvmTransaction(tx) and throws.

What changed

• asTronTransaction reads Rango's raw_data (and approve_raw_data) as a
  TriggerSmartContract payload. Every level uses .withRest, so nothing the provider sent is
  dropped before it reaches the currency plugin: parameter.type_url is serialized into the
  signed raw data, so losing it would change the transaction.
• The TRON case builds a spendInfo carrying { contractJson, feeLimit } in otherParams
  and targeting the router address. A TRC20 sell also needs an allowance, which Rango returns
  inline as approve_raw_data; that becomes a tokenApproval pre-transaction, the same shape
  the EVM path already uses.
• Provider payloads are bound to the quote before anything is signed: the swap's call_value
  may not exceed the quoted amount (native TRX) or be nonzero (TRC20), and the approval must
  grant the swap router, over the sold token, no more than the quoted sell amount, with no TRX
  attached. The swap itself may not call the sold token contract or use a transfer/approve
  selector, so the bounded approval is the only call that touches the token directly. Neither call may
  attach a TRC10 balance (call_token_value).
• hexToTronAddress converts the hex addresses in a contract payload to the base58check form
  wallets and spend targets speak.

Rango API key as apikey

Rango is deprecating its old way of passing the API key and asked for the apikey query
parameter. makeRangoAuthParams puts the key in both apikey and the legacy apiKey, used by
basic/swap and the mapctl synchronizer's basic/meta. Sending only apikey is not possible
yet: against api.rango.exchange, apikey alone returns 401, apiKey alone 200, and both
together 200.

Testing

Unit tests cover the address conversion against the USDT contract, the Sun Swap router, and an
owner address.

Driven against the live Rango API with stub wallets: a native TRX sell produces one swap
spendInfo with call_value set and no approval; a USDT sell produces the 095ea7b3 approval
pre-transaction followed by the swap.

Then end to end on the iOS sim with edge-currency-accountbased#1088
linked in: a TRX → USDT swap through Rango reached the success scene, and on-chain
42fd4970…9650
is a TriggerSmartContract with contractRet: SUCCESS, selector cef95229 against the Sun Swap
router, delivering 13.004043 USDT in the same transaction. Screenshots in a comment below.

For the apikey change and the payload guards, with this branch's bundle and
edge-currency-accountbased#1088's copied into the installed app:

• A unit test asserts both key parameters reach the query string, and a live drive of the real
  plugin showed basic/swap returning 200 with apikey and apiKey in the query and no key
  header.
• 3.001 USDC → 32.40 POL on Polygon through Rango reached the success scene.
• 14.709 TRX → 5.007 USDT through Rango: 73d275c5…,
  TriggerSmartContract SUCCESS, selector cef95229, call_value 14709000 (the quoted amount).
• 5.002 USDT → 14.714 TRX through Rango, the TRC20 sell: approval
  60e0b6e4…
  grants exactly 5002000 to the Sun Swap router with call_value 0, then swap
  87785e37…,
  both SUCCESS.
• On the final build (TRC10 guard included): 3.001 USDT → 8.926 TRX, approval
  1f6f4b0e…
  granting exactly 3001000, swap
  d44d1e67…,
  both SUCCESS.

---

Note

Medium Risk
Adds a new on-chain swap execution path with TRC20 approvals; validation mitigates wrong-spender approvals, but execution still depends on companion Tron contract-call support in the currency plugin.

Overview
Rango TRON swaps no longer hit the EVM default branch and fail parsing. Responses with tx.type === 'TRON' are validated and turned into wallet spends that pass Rango’s TriggerSmartContract payload through to the Tron currency plugin via otherParams.contractJson and feeLimit.

For TRC20 sells, when Rango includes approve_raw_data, the plugin queues a tokenApproval pre-transaction (same pattern as EVM). It decodes the approval spender from call data and rejects approvals that don’t target the swap router or the token being sold.

Address helpers hexToTronAddress and decodeTronApprovalSpender convert hex contract addresses to base58 and parse approve() calldata; unit tests cover known contracts and error cases.

^{Reviewed by Cursor Bugbot for commit bcccdb3. Bugbot is set up for automated code reviews on this repo. Configure here.}

[j0ntz]

📸 Test evidence: Rango TRX → USDT swap on iOS sim

rango trx usdt quote

rango trx swap success

rango trx tx details

Captured by the agent's in-app test run (build-and-test).

[chatgpt-codex-connector]

You have reached your Codex usage limits for code reviews. You can see your limits in the Codex usage dashboard.

[cursor]

Stale comment

[j0ntz]

📸 Test evidence (apikey query param)

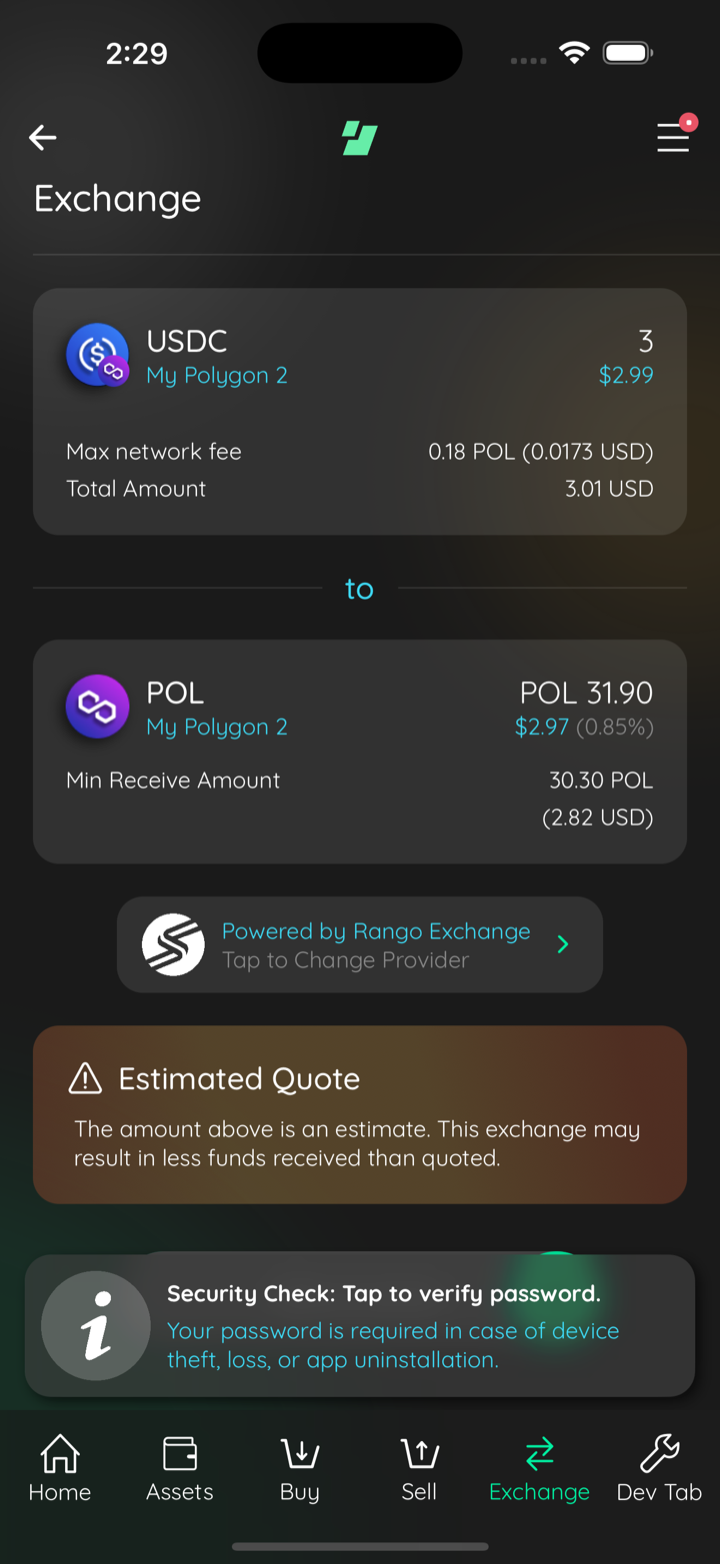

rango usdc pol quote

rango usdc pol swap success

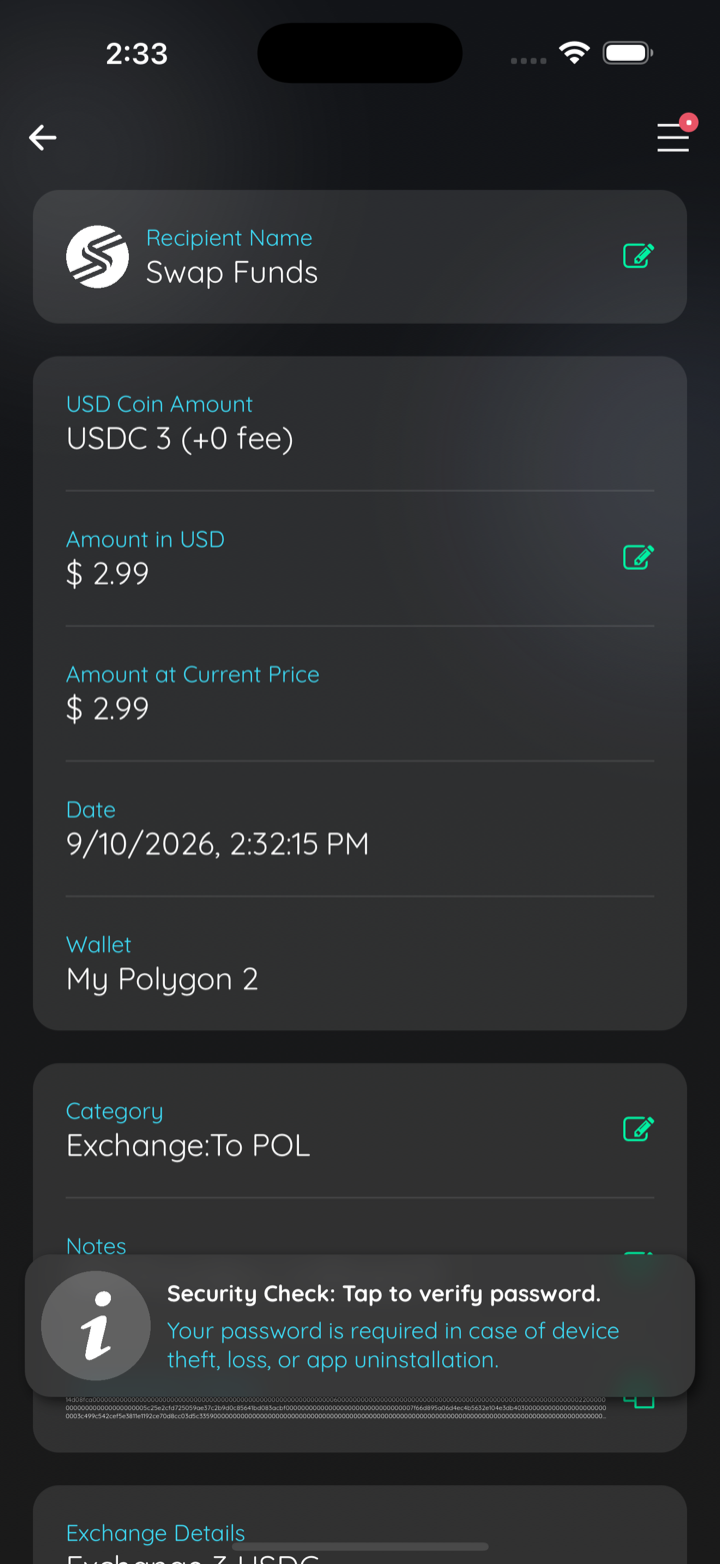

rango usdc pol tx details

Captured by the agent's in-app test run (build-and-test).

[cursor]

Stale comment

Agentic security review found two issues in the new Rango TRON path: unbounded provider approval amounts (HIGH) and unsigned call_value vs quoted nativeAmount (MEDIUM). The earlier spender-mismatch thread remains addressed.



_{Sent by Cursor Security Agent: Security Reviewer}

[cursor]

Stale Bugbot comment from a previous run.

[cursor]

Stale comment

[cursor]

Stale comment

Agentic security review found one remaining high-severity issue on the TRON swap path: provider swap calldata is still not bound to the quoted sell after the sold-token and selector checks. Approval amount and call_value guards do not cover an omitted-approval router pull against an existing allowance, or increaseApproval on a token other than the asset being sold.



_{Sent by Cursor Security Agent: Security Reviewer}

[cursor]

Cursor Bugbot has reviewed your changes using default effort and found 1 potential issue.

^{❌ Bugbot Autofix is OFF. To automatically fix reported issues with cloud agents, enable autofix in the Cursor dashboard.}

^{Reviewed by Cursor Bugbot for commit a89a728. Configure here.}

[j0ntz]

Correction to the "Test evidence (apikey query param)" comment above: that Polygon swap ran the published edge-exchange-plugins 2.55.0, not this branch. The iOS build's npm install reverted the local link before the bundle was embedded. The comment below replaces it: the branch's own bundles were copied into the installed app (verified by literals only this branch contains), and the same USDC to POL swap plus both TRON directions were executed on it.

[j0ntz]

📸 Test evidence (branch bundles: apikey + TRON both directions)

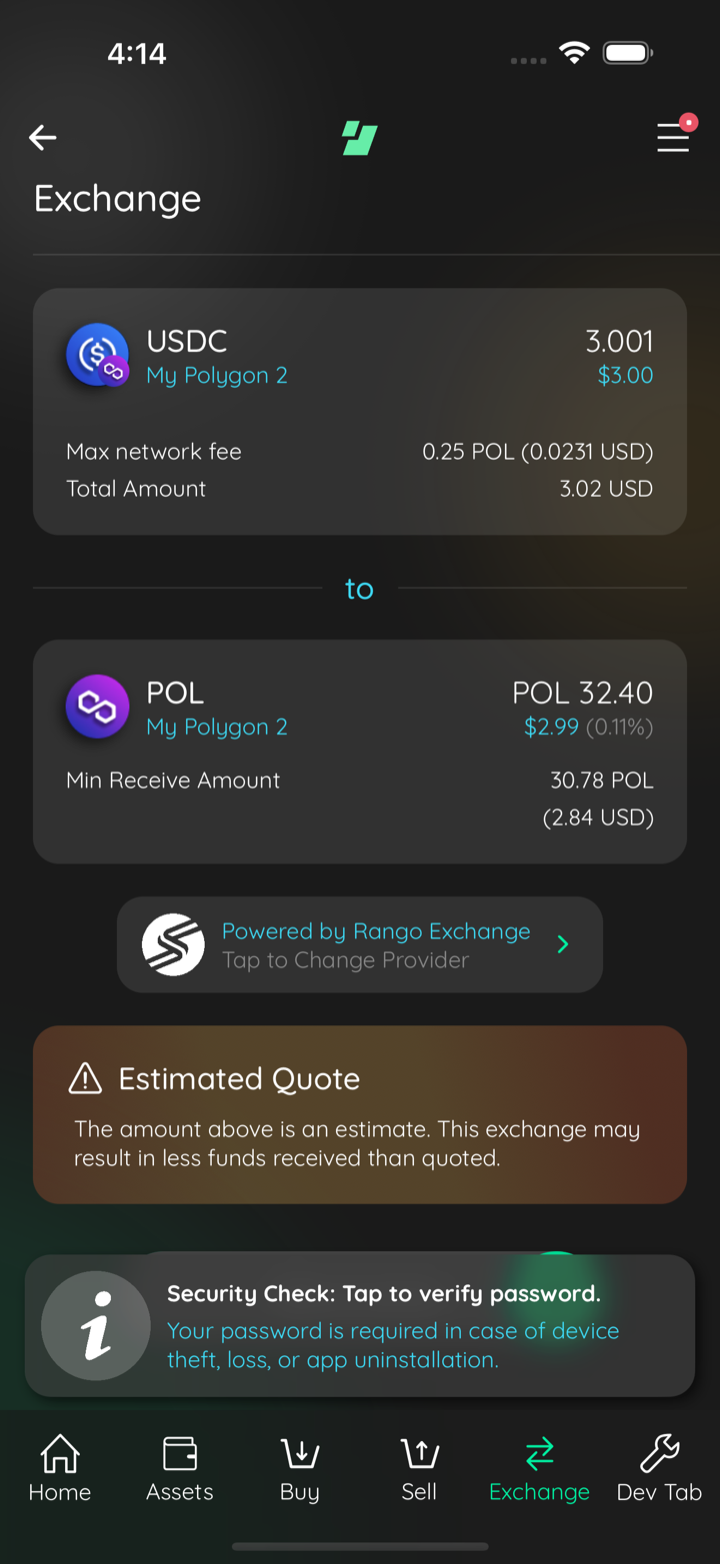

rango usdc pol quote branch

rango usdc pol swap success branch

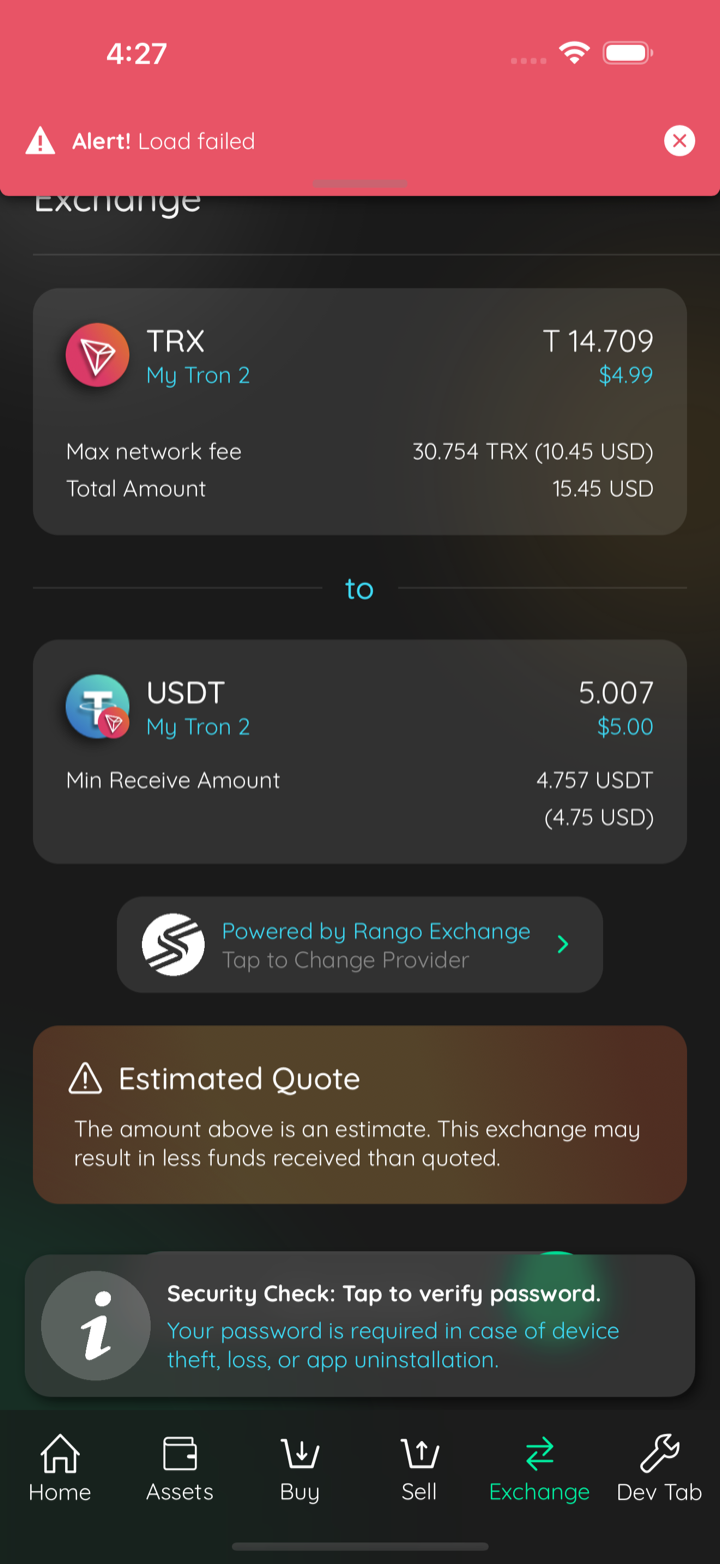

rango trx usdt quote

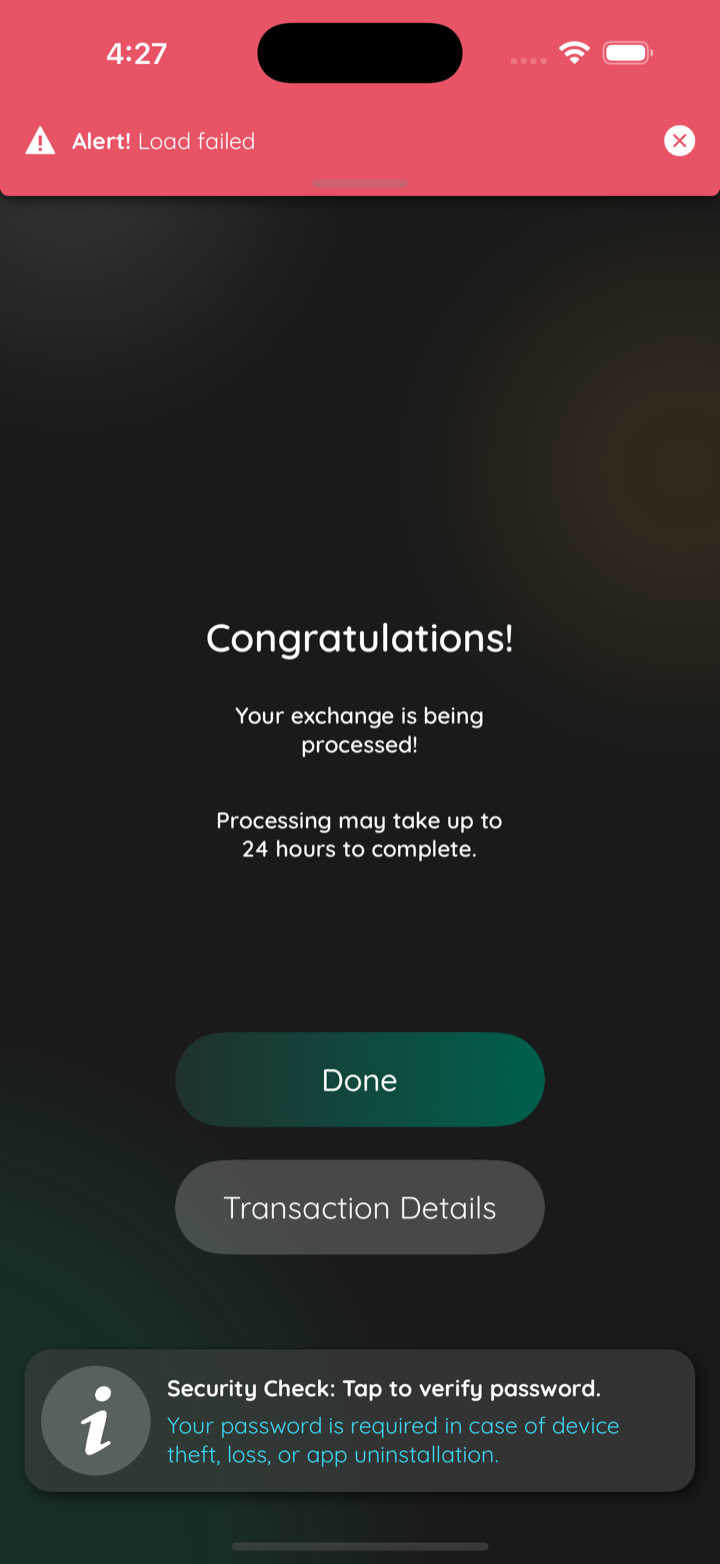

rango trx usdt swap success

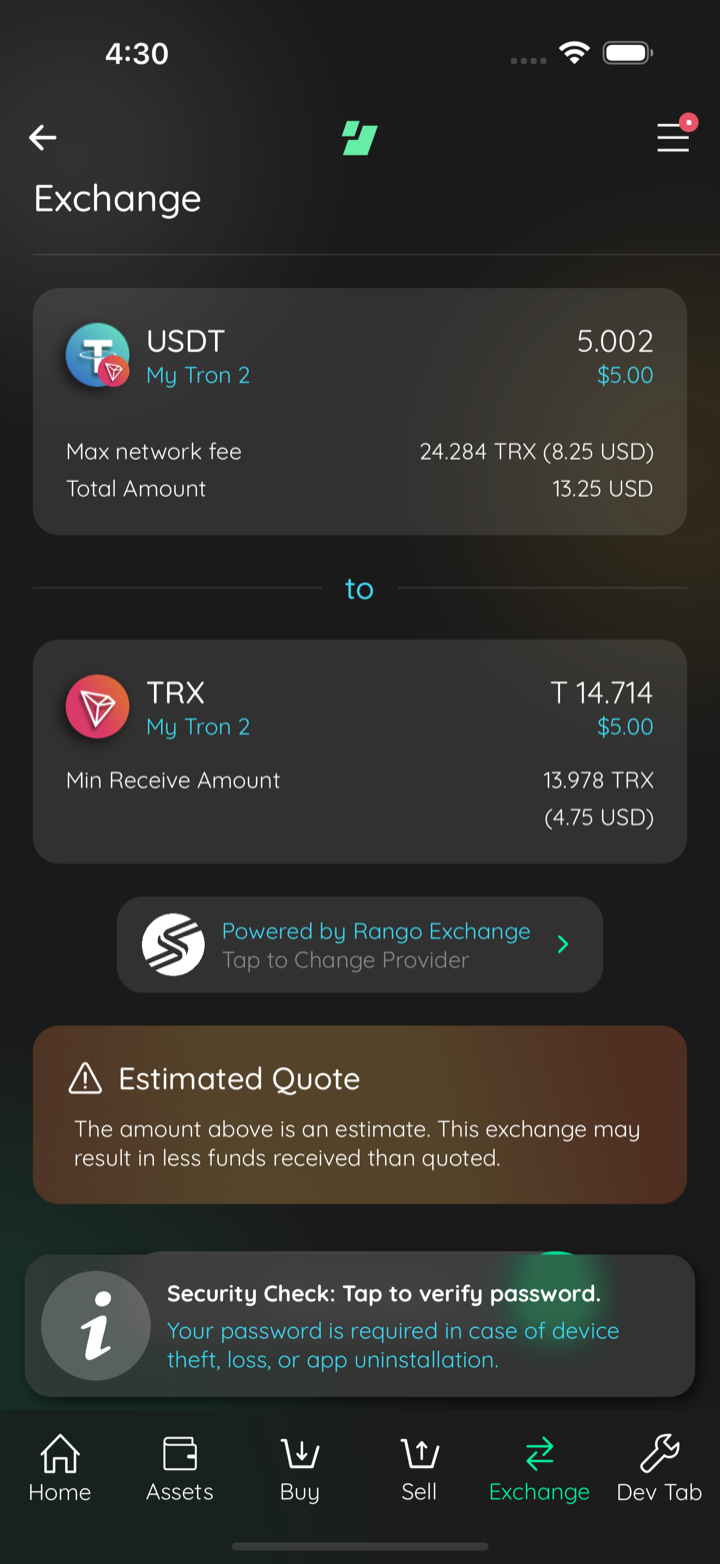

rango usdt trx quote

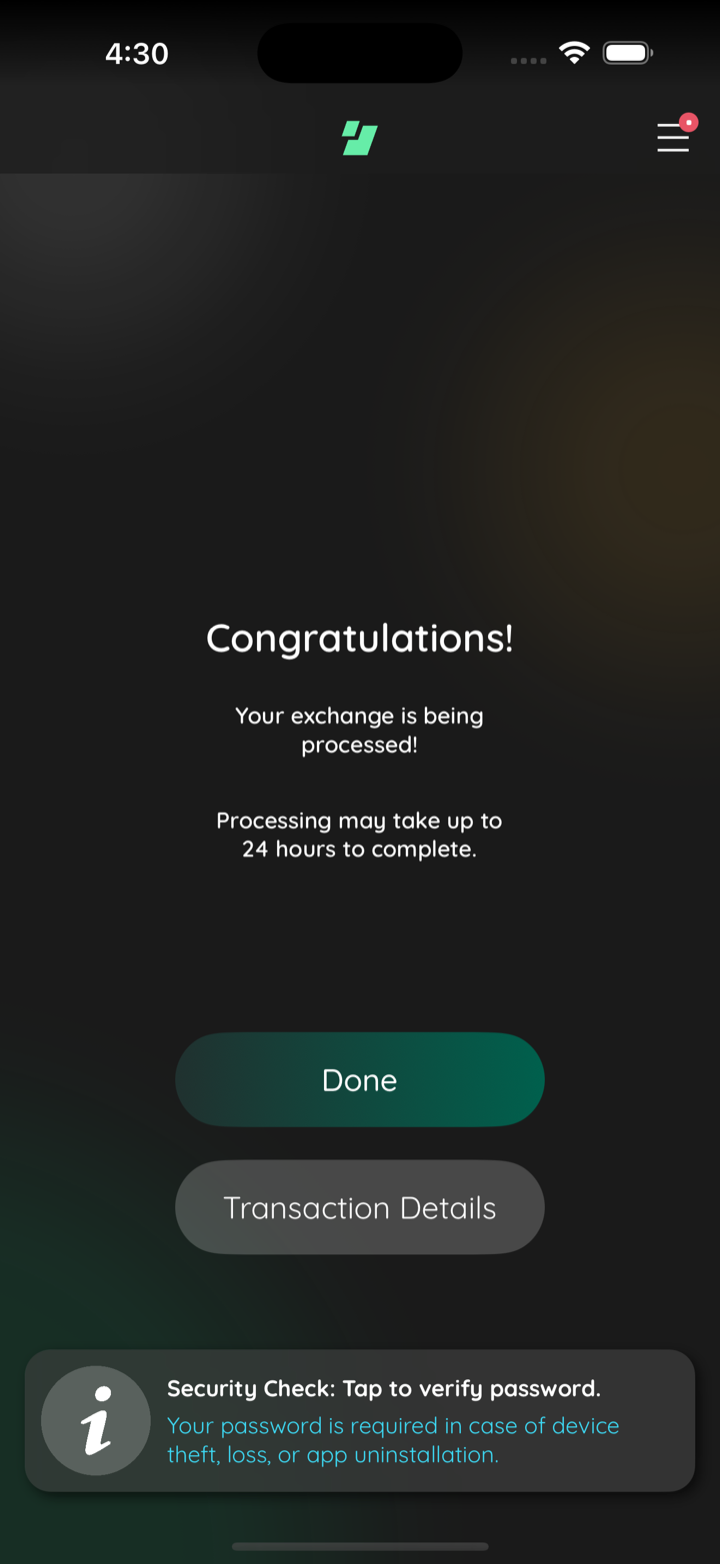

rango usdt trx swap success

Captured by the agent's in-app test run (build-and-test).

[cursor]

Agentic security review of the Rango TRON path found one remaining high-severity issue: provider fee_limit is copied unbounded onto the signed spend while the displayed network fee uses the energy estimate (or a small fallback). Prior findings on this PR were already addressed.



_{Sent by Cursor Security Agent: Security Reviewer}

[j0ntz]

📸 Test evidence (final build: USDT to TRX with approval)

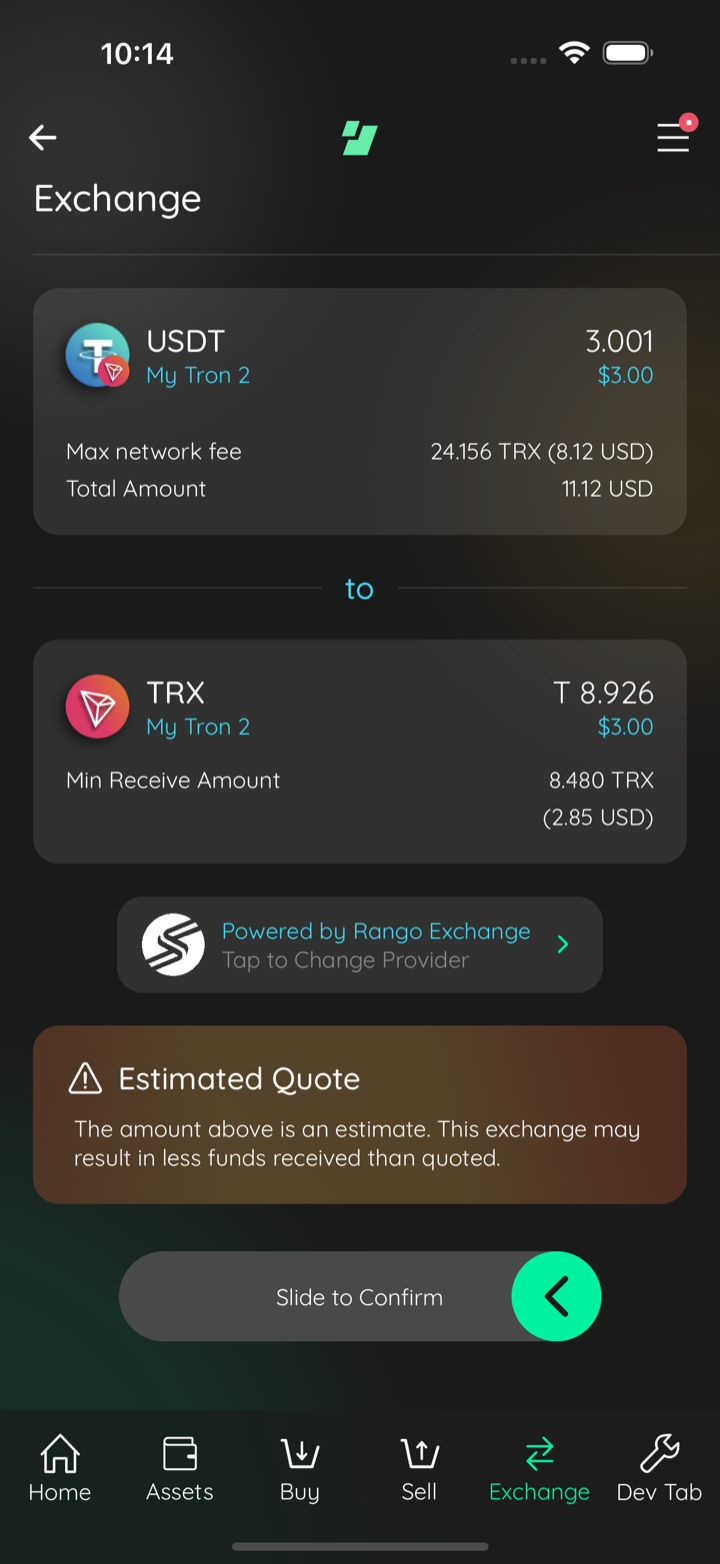

rango usdt trx quote final

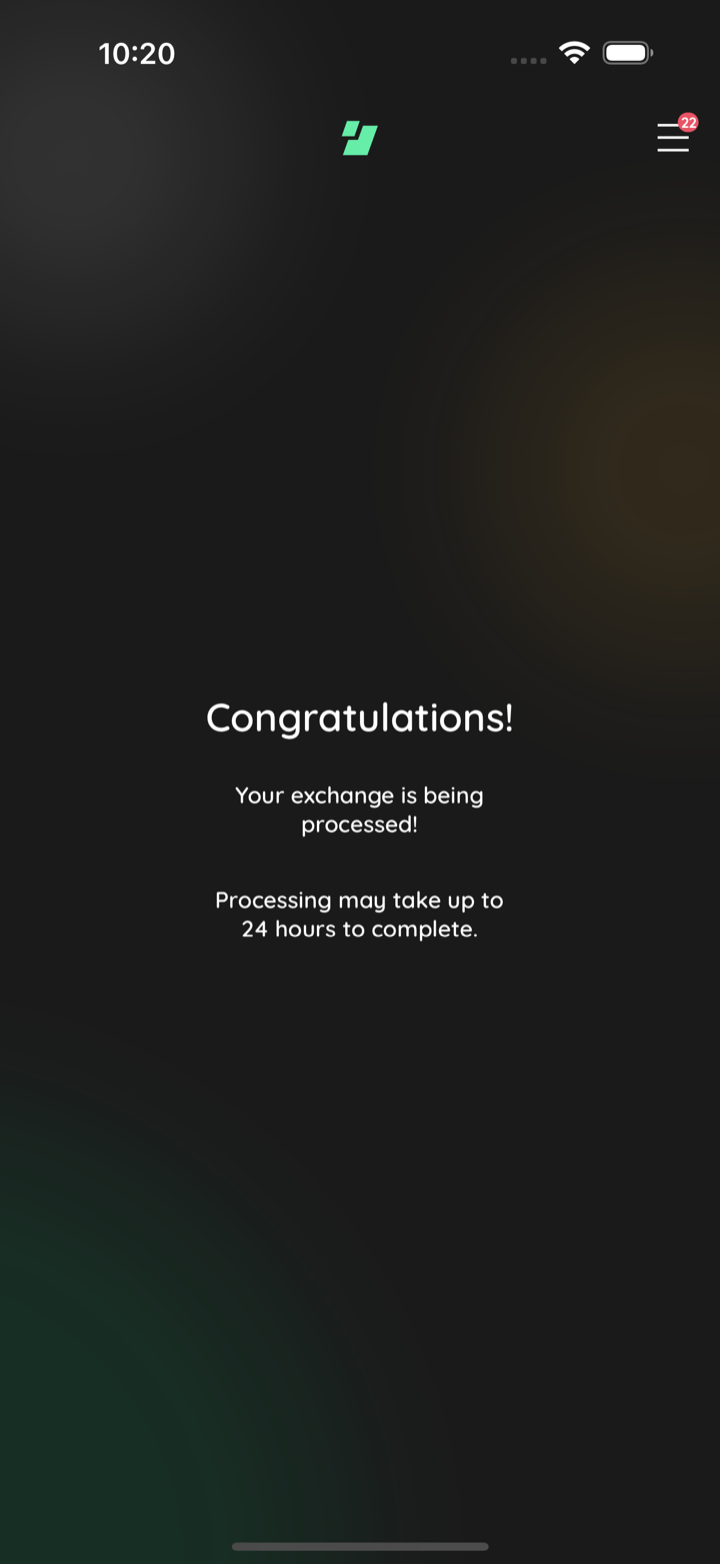

rango usdt trx swap success final

Captured by the agent's in-app test run (build-and-test).
